Introduction

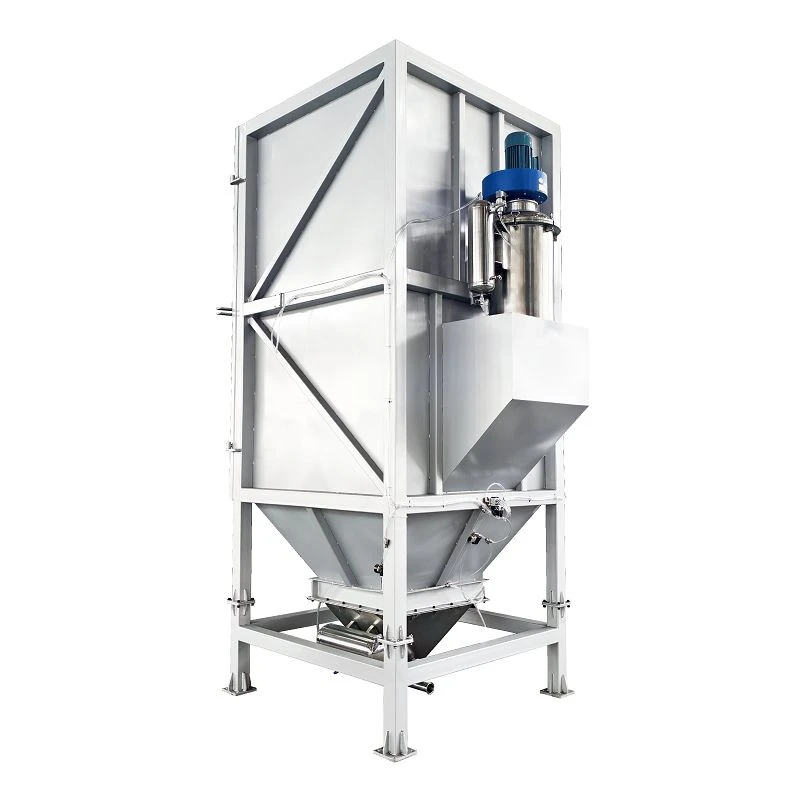

The ton bag unloading machine (also known as Jumbo bag unloading station or large bag unloading machine) is a specialized equipment designed for the efficient, dust-free and safe unloading of powder/particle materials in flexible ton bags (PP woven bags) weighing 500 - 2000 kg. It is widely used in industries such as chemical, building materials, food, pharmaceuticals, and new energy.
Key Constructure
- Rack and load-bearing hanger: Carbon steel / stainless steel, capable of supporting totes and equipped with an electric hoist (0.5 – 2t) for lifting and movement.
- Bag sealing device: Pneumatic / mechanical clamping, sealing the bag opening to prevent dust leakage.
- Unpacking mechanism: - Unbagging type: Manual rope release or pneumatic rope cutting (bags can be recycled).
- Bag cutting type: Automatic blade cuts the bottom of the bag (bags cannot be recycled).
- Hopper and agitator: Conical hopper + vibrator / tapping device, preventing material bridging and agglomeration.
- Dust removal system: Bag / cyclone dust collector, negative pressure sealed, dust does not leak out.(for option)
- Conveying interface: Can be equipped with pipe chain, screw, or pneumatic conveying to the next process.
- Electrical control system: PLC + touch screen, supporting manual/automatic, remote monitoring, emergency stop or Manual button for option
Working Principle
Core logic: Lifting → Sealing → Unpacking → Gravity Discharge → Assisting Flow → Dust Removal → Transportation.
1. Loading positioning: The forklift transports the ton bags to the workstation, and the electric hoist hooks the straps, lifting them above the hopper and suspending them.
2. Sealing bag closure: The bag opening is pulled into the bag closure device, and the air pressure clamps seal it; manually release the binding rope (for cutting bag type, start the cutting knife).
3. Unpacking and discharging: - Unpacking type: Slowly release the bag closure, and the material falls due to gravity.
- Cutting bag type: The blade cuts the bottom of the bag, and the material quickly falls into the hopper.
4. Assisting flow and preventing blockage: The vibration device and the tapping device operate intermittently to break up bridging and agglomeration, ensuring smooth material flow.
5. Dust treatment: The entire process is under negative pressure sealing, and the dust is collected by the dust collector, and clean air is discharged.
6. Material transportation: The material in the hopper is transported by the conveyor to the storage bin or production line; empty bags are collected and processed.
Specification
- Processing capacity: 2 - 6 bags per hour (approximately 1 - 3 tons per hour).
- Power supply: 380V/50Hz, 2.2 - 7.5kW.
- Air source: ≥ 0.6MPa, 0.3 - 0.6m³/min.
- Material: Carbon steel (sprayed) / 304 / 316L stainless steel.
- Dust control: Enclosure + dust removal, dust concentration ≤ 5mg/m³.
Advantages
Dust-free and environmentally friendly: Sealed + negative pressure dust removal, improving the workshop environment.
Highly efficient and labor-saving: Replacing manual labor, efficiency increases by 3-5 times, reducing labor intensity.
Highly adaptable: Suitable for powders/particles, materials with poor fluidity, and those prone to moisture absorption and caking.
Safe and reliable: Explosion-proof option available, with features such as anti-collision, anti-fall, and emergency stop protection.
Easy to maintain: Modular design, convenient for disassembly, cleaning, and maintenance.
Application
Chemicals: Resin, soda ash, carbon black, fertilizers.
Building materials: Cement, lime, gypsum, sand and gravel.
Food/feed: Flour, starch, soybean meal, additives.
New energy: Lithium battery materials (ferro lithium, graphite).
MAINTENANCE & SERVICES
1.Before order, customer can take materials to ourvlab and make test grindings, spot-testing parameters like particle size distribution, obtain reliable data for model selection;
2.We provide you opeatian manual by chinese or English;
3.We offer you Videos for equipment installation and maintenance in both English and Chinese;
4.With three years of spare parts inventory to ensure normal use and make you to be in trouble free;
5.Within 12-months warranty period, we promise to change damaged parts free of charge by air or by sea;
6.After delivery, our professional engineer will offer on-site guidance debugging free of charge, according to different characteristic of materials, to set up the operational parameters of the mill and ensure optimal grinding quality & equipment running status;
7.After the warranty period, we provide maintenance and maintenance service, only charge the cost;
8.Meanwhile, our skillful grinding experts can offer you free professional technical consulting and service.
