Shanghai ELE Mechanical and Electrical Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of bin pump in China. Welcome to buy cost-efficient bin pump for sale here from our factory. Quality products and reasonable price are available.
Introduction:

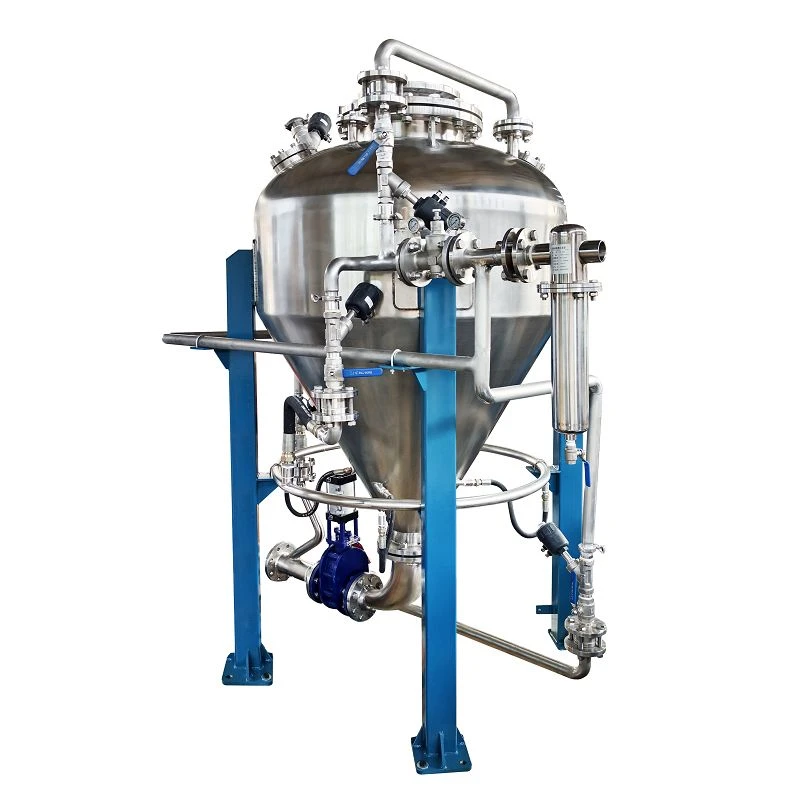

Bin pump is a high-pressure dense-phase pneumatic conveying device. It fluidizes materials by compressed air and pushes materials forward in plug flow at low speed under high pressure.
A complete working cycle consists of four stages:
1. Feeding: Open the feeding and vent valves; materials fall into the tank by gravity. Close all valves after full loading.
2. Fluidization and pressurization: Compressed air passes through the fluidization plate at the tank bottom to fluidize materials, and the internal pressure rises to 0.2–0.7 MPa.
3. Dense-phase conveying: Open the discharge valve. High-pressure air pushes materials into the pipeline at a low speed of 3–8 m/s to form plug flow.
4. Purging and resetting: After material delivery, air purges the pipeline to prevent blockage. Then exhaust and depressurize for the next cycle.
Application
It is applicable to dry powder and granular materials, especially for long-distance, large-flow and high-abrasion working conditions.
- Power industry: Convey fly ash in thermal power plants; conveying distance: 500–2000 m, capacity up to 50 t/h.
- Building materials: Cement, raw meal, slag powder; solid-gas ratio up to 60:1, max conveying distance 800 m.
- Metallurgy: Pulverized coal injection for blast furnace, alumina powder and ore fines; inert gas protection available for explosion-proof requirements.
- Chemical industry: PVC powder, catalyst, chemical fertilizer, sulfur, etc.
- Other fields: Starch, flour, incineration fly ash, mineral concentrate.
Features
- Low material velocity (3–8 m/s), low abrasion to pipeline and materials.
- High solid-gas ratio, low air consumption and operating cost.
- Suitable for long-distance conveying with large throughput and high working pressure.
- Fully enclosed structure, dust-free and environmentally friendly.
- Good adaptability for abrasive, fragile and high-density materials.
- Robust structure with wear-resistant lining, long service life (15–20 years).
