CNC Three Roll Mill EGMS-50

Shanghai ELE Mechanical and Electrical Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of cnc three roll mill egms-50 in China. Welcome to buy cost-efficient cnc three roll mill egms-50 for sale here from our factory. Quality products and reasonable price are available.

Introduction:

• High energy & energy concentrated & Roller gap can be controlledbytouch screen.
• Suitable for dense, finely distributed, homogenized, and dispersed abrasive materials in adhesives or semi-liquid dispersions.
• Used for small-batch research and development, laboratory, and production applications.
• Widely industrial products: cosmetics, pigments, electronics, food, dental supplies, ceramics, lubricants, adhesives, soaps, and some specialty products.
• Product fineness is approximately 5-10 μm.
• Roller materials are available (alumina, zirconium oxide, hard chrome plated stainless steel, and other special materials for specific requirements).
• Different scraper materials are available (zirconia, stainless steel, and various plastic materials).

Machine details:

1)Roller gapadjust:

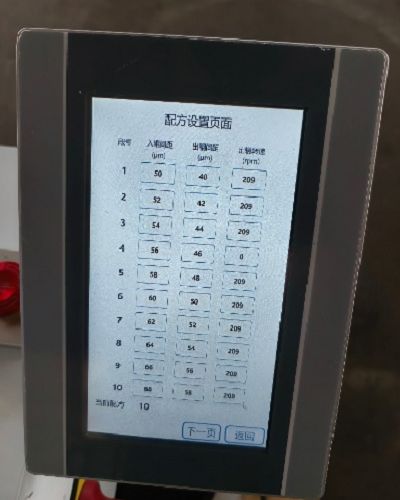

2) Recipe setting

Advantages

CNC ControlSystem:

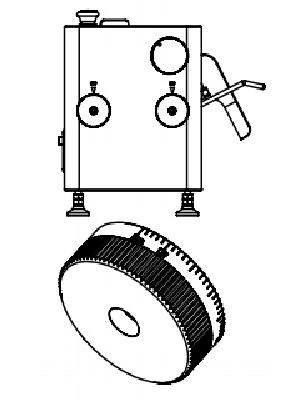

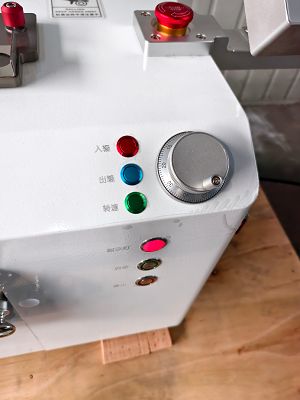

 Roller Gap can adjust:

Rotating the knob outward increases the gap; rotating the knob inward decreases the gap.

1)Gap 1-20μm: Minimum roller gap = finest distribution = lowest material throughput

2)Gap 20-40μm: Medium roller gap = medium distribution = medium material throughput

3)Gap 40-10μm:Maximum roller gap=coarsest distribution=maximum material throughput

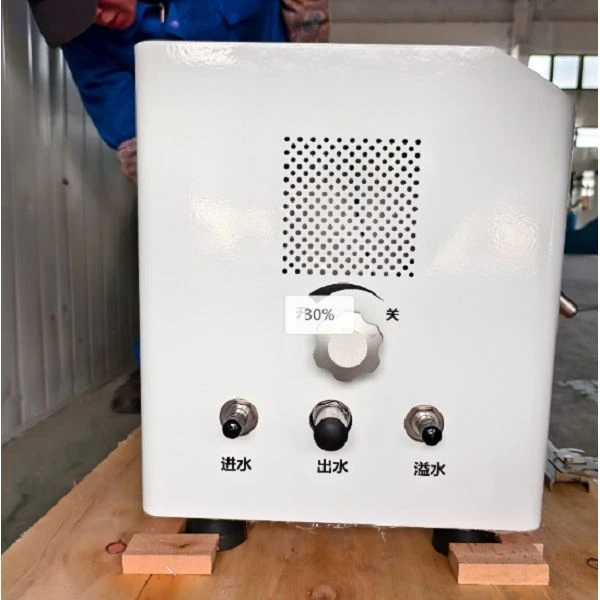

Temperature control system

A cooling (or heating) temperature control system can be installed. The inlet flow of the cooling temperature control equipment is controlled by a ball valve, and the maximum temperature can reach 80°C (for high-temperature customized rollers), while the normal operating temperature does not exceed 60°C.

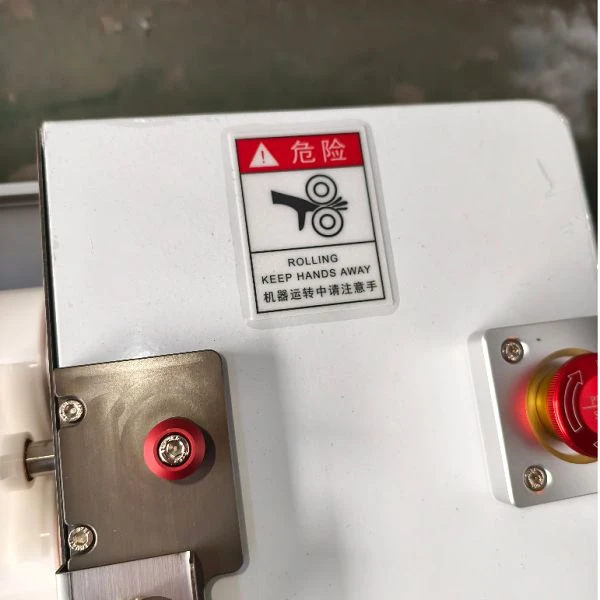

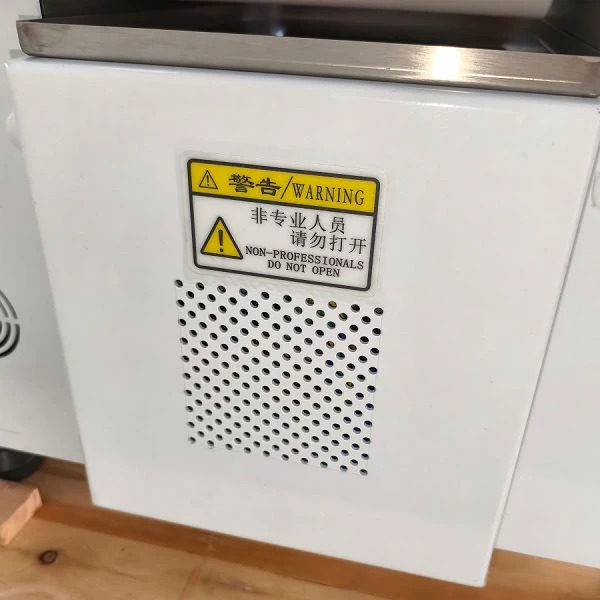

Work safety protection system:

  Installing a sensor-equipped self-protection system can improve safety and prevent accidents.

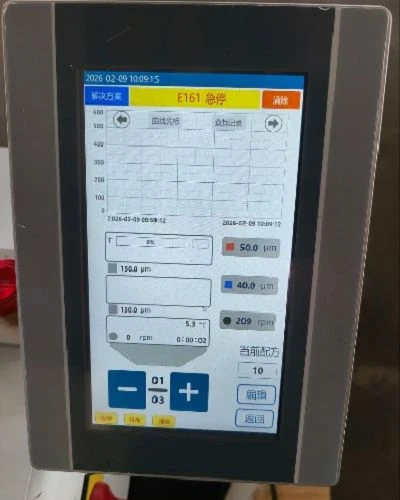

Operation interface

• After powering on, please click "Reset". The device will perform a self-check. If any abnormality is detected, relevant alarm codes will be displayed.
• Different modes are available for you to choose.

Application

• Mainly for paste materials: ink, paint, pigment, soap, artificial leather, plastic, grease, chocolate. Ideal for high-viscosity, high-fineness products.
• High hardness & wear-resistant surface; cooling system for continuous operation.
• Self-developed MCU control, modular design,3-in-1 control, higher compatibility & controllability.

Data Sheet & Models

Professional technical supports & Processing Machines

• Our engineers are around30years rich experience in this area, professional skills and stable processing.

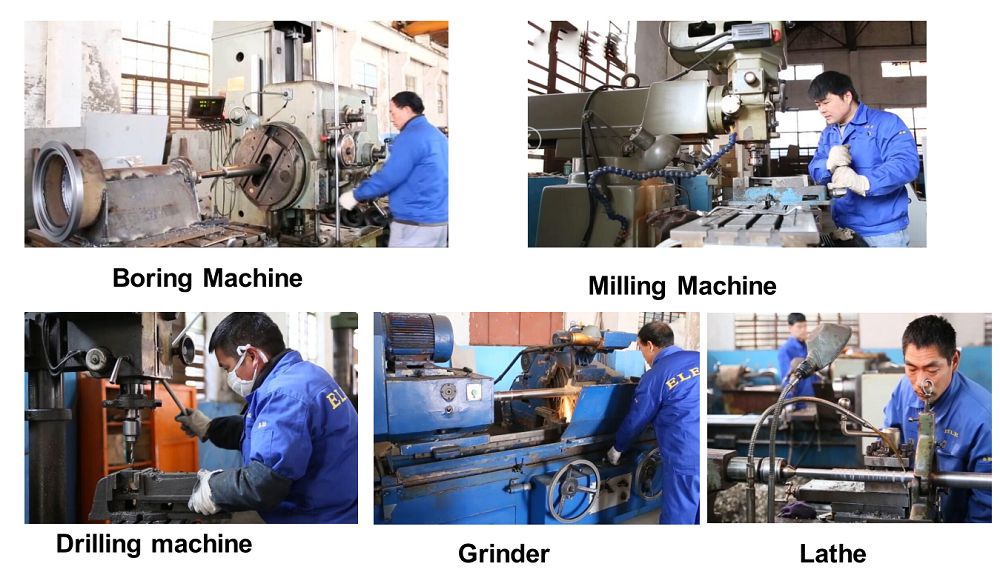

• We have lathes, grinder, drilling machine, boring machine, polishing machine, milling machine…etc.

MAINTENANCE & SERVICES

1.Before order, customer can take materials to our lab and make test grindings, spot-testing parameters like particle size distribution, obtain reliable data for model selection;

2.We provide you operation manual by Chinese or English;

3.We offer you Videos for equipment installation and maintenance in both English and Chinese;

4.With three years of spare parts inventory to ensure normal use and make you to be in trouble free;

5.Within 12-months warranty period, we promise to change damaged parts free of charge by air or by sea;

6.After delivery, our professional engineer will offer on-site guidance debugging free of charge, according to different characteristic of materials, to set up the operational parameters of the mill and ensure optimal grinding quality & equipment running status;

7.After the warranty period, we provide maintenance and maintenance service, only charge the cost;

8.Meanwhile, our skillful grinding experts can offer you free professional technical consulting and service.
