Shanghai ELE Mechanical and Electrical Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of eyw-5 high efficiency large capacity pre-grinding mill in China. Welcome to buy cost-efficient eyw-5 high efficiency large capacity pre-grinding mill for sale here from our factory. Quality products and reasonable price are available.
The solution of large capacity wet pre-grinding process, accelerates the dispersing of large agglomerates during pre-mixing and speed the pre-grinding of the big particles, effectively preventing material blockage during fine grinding in the next process, and greatly shortening the grinding time to improve production efficiency.
Combined the grinding chamber and rotor stator structure together, dynamic separating technique without sieve, large scale of input particle size, large output, accelerate the production efficiency and provide the perfect solution for the next step of fine grinding.
Technical Details:
Mode: EYW-5
Grinding Chamber: 5L
Motor: 22KW
Structure: Dynamic Separate without sieve
Flowrate: 1000~4000L/H
Bead Size: 2.0-4.0mm
Size: 1250*900*1300
High Efficiency Large Capacity Pre-Grinding Mill Advantages
ELE- MILL RESEARCH LAB successfully designed the EYM series pre grinding machine and means the maturity and perfection of the machine, the machine mainly aims at:
Suitable for continuous high efficiency and large capacity pre grinding process, large input particle size scale
Dynamic gap separator without sieve, ensure the smooth throughput, no blocking.
Adopts special material with large flange double cartridge mechanical seal, no leakage, guarantee the machine works for long and continuous time
Feeding by gear pump, suitable for different viscosity products
Wider feeding size up to 1~2mm

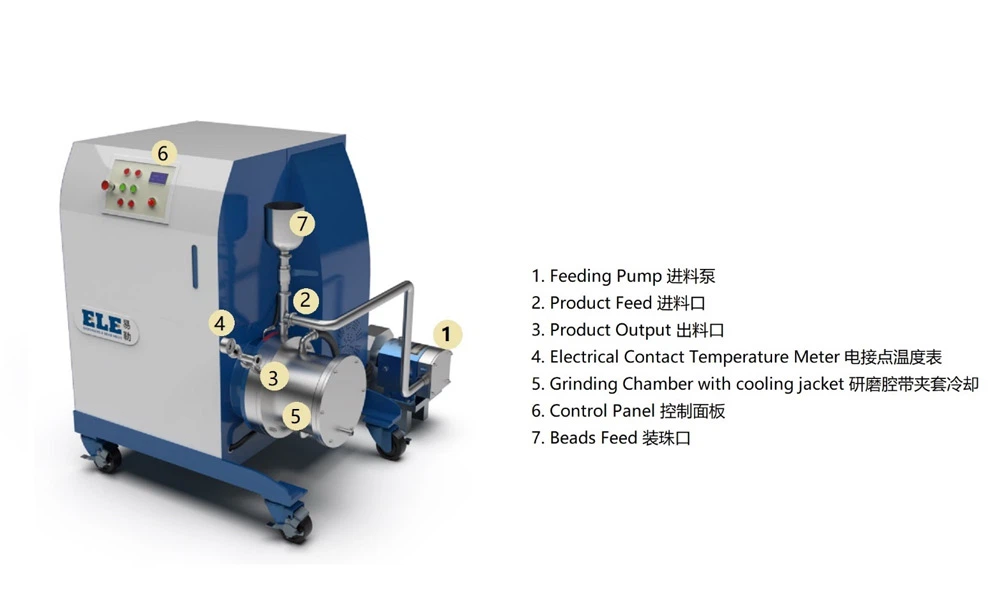

Feeding System
Feeding by gear pump, suitable for different viscosity products
Grinding Chamber
Rotor: Harden Alloy Steel
Stator disc (bearing side): Harden Alloy Steel
Stator tube: Harden Alloy Steel
Grinding chamber volume: approx. 5 L
max. permissible product temperature: 70 °C
Discharge system
Dynamic gap separator without sieve, ensure smooth throughput, no blocking
Cooling system
Grinding Chamber with spiral jacket for cooling
Cooling tank for mechanical seal
Mechanical Seal
ELE patent large flange double cartridge mechanical seal, endure high pressure, no leakage

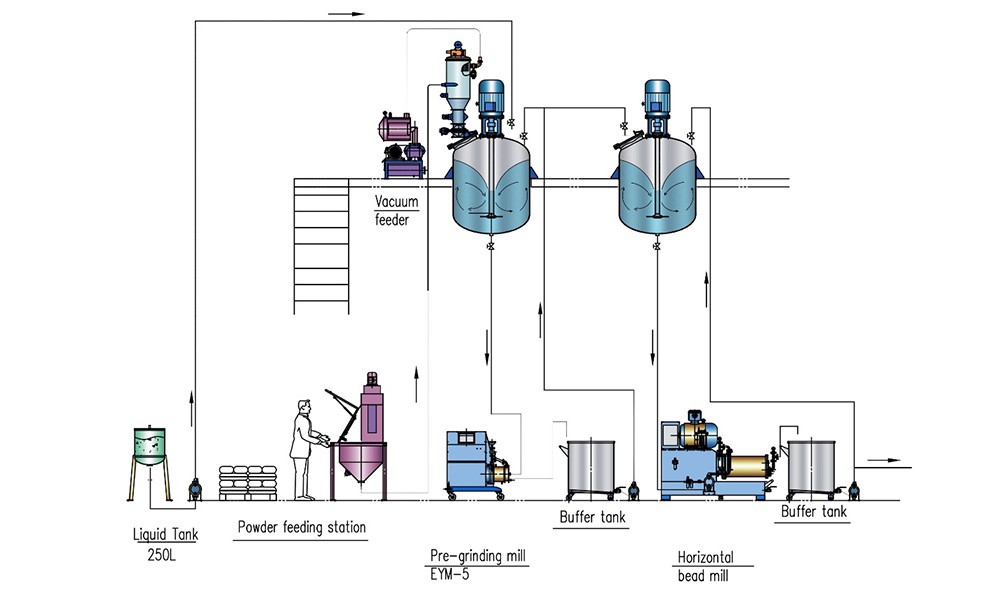

Pre-grinding and Horizontal Bead Mill cooperate perfect, Large flow, high efficiency, Save cost and save time.
Application
Printing and dyeing
ink
chemical industry
pesticide
