Shanghai ELE Mechanical and Electrical Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of stirred media mill in China. Welcome to buy cost-efficient stirred media mill for sale here from our factory. Quality products and reasonable price are available.
●ELE Stirred Media mill is suitable for low temperature requirement, Fine particle size requirement.
●ELE Stirred Media mill is suitable for High efficiency Ultra-Fine Industrial Continuous production. Its advantages are as following:
Three Types Media Mill for option
Pin type Media Mill
Turbo Type Media Mill
Disc Type Media Mill
Specification
●Special Turbo accelerator will guarantee the beads get maximum speed at grinding area;
●Grinding media is even distributed inside the grinding chamber, the final particle size is narrow distributed.
●ELE-NET0.1 discharging sieve is designed for superfine material, to ensure of large flow rate, and microbeads can be used at the same time;
●Selection of special material (zirconia / silicon carbide/hard alloy steel etc.) enhance wearability of all processing contact parts,It adopts internal thread type cooling way, effectively improves heat dissipation the grinding chamber.
●Unique double cartridge mechanical seal, to ensure long operation of shaft seal ,maximum 8 -10 kg pressure.

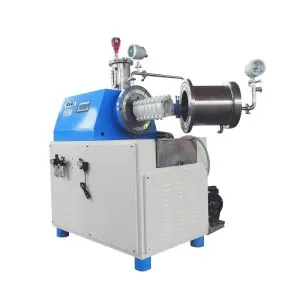

Machine Photos
Advantages
Special Feeding System:
Feeding pump with buffer tank to make sure feeding smoothly, buffer tank with pressure meter, If the grinding chamber is blocked, we can release the pressure from the buffer tank.
Discharging System: New technology of Discharge method
Large Area centrifugal separator, the centrifugal wheel push away the grinding beads from the discharge sieve, make sure discharge smoothly, no blocking of beads.
Special Mechanical Seal & Bearing Housing:
Special double cartridge mechanical seal, ensure long operation of shaft seal, maximum 8 -10 kg pressure;
Special Bearing Housing, match mechanical seal well, one whole part, ensure the accuracy to below 0.03mm. Make sure stable working & extend the long life.
Cooling system:
High efficiency large area spiral ribbon type jacket water circulation chamber wall cooling
Feeding pipe with jacket for cooling
End cover corrugated cooling
Cooling Tank for Mechanical Seal
