Shanghai ELE Mechanical and Electrical Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of bead mill for color paste in China. Welcome to buy cost-efficient bead mill for color paste for sale here from our factory. Quality products and reasonable price are available.

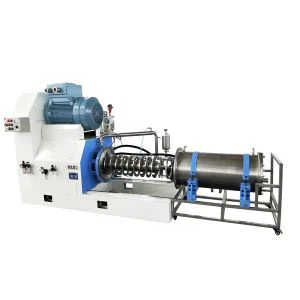

ELE bead mill is suitable for Color Paste production.
ELE Color Paste sand mill is suitable for High efficiency Ultra-Fine Industrial Continuous production.
Suitable for low and medium & high viscosity materials, and with the requirements of ultra fineness or nanoscale fineness
Multiple cooling system , powerful cooling efficiency
Three Types of Contact material for option
Harden Alloy Steel：
Strong Wear resistance, Alloy with special treatment, Hardness reach HRC62
 |  |
Ceramic:
With Special ceramic material: zirconium or silicon carbide, Stronger wear resistance, No Metal contamination, Hardness reach HRC72-78.
 |  |
PU polyurethane ：
No Metal contamination
Advantages
Special Feeding System:
Feeding pump with buffer tank to make sure feeding smoothly, buffer tank with pressure meter, If the grinding chamber is blocked, we can release the pressure from the buffer tank
Discharging System: New technology of Discharge method
Large Area centrifugal separator, the centrifugal wheel push away the grinding beads from the discharge sieve, make sure discharge smoothly, no blocking of beads
Special Mechanical Seal & Bearing Housing:
Special double cartridge mechanical seal, ensure long operation of shaft seal, maximum 8 -10 kg pressure;
Special Bearing Housing, match mechanical seal well, one whole part, ensure the accuracy to below 0.03mm. Make sure stable working & extend the long life.
Cooling system:
High efficiency large area spiral ribbon type jacket water circulation chamber wall cooling
Feeding pipe with jacket for cooling
End cover corrugated cooling
Cooling Tank for Mechanical Seal
Professional technical supports & Processing Machines
Our engineers are around 20years rich experience in this area, professional skills and stable processing.
We have lathes, grinder, drilling machine, boring machine, polishing machine, milling machine…etc.
