Shanghai ELE Mechanical and Electrical Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of paint bead mill in China. Welcome to buy cost-efficient paint bead mill for sale here from our factory. Quality products and reasonable price are available.
ELE bead mill adopt CNC machining production, and has got CE approval. The international advanced design of length to diameter ratio, high energy concentration realize large flow ultrafine grinding, grinding energy will be used as efficiently as possible

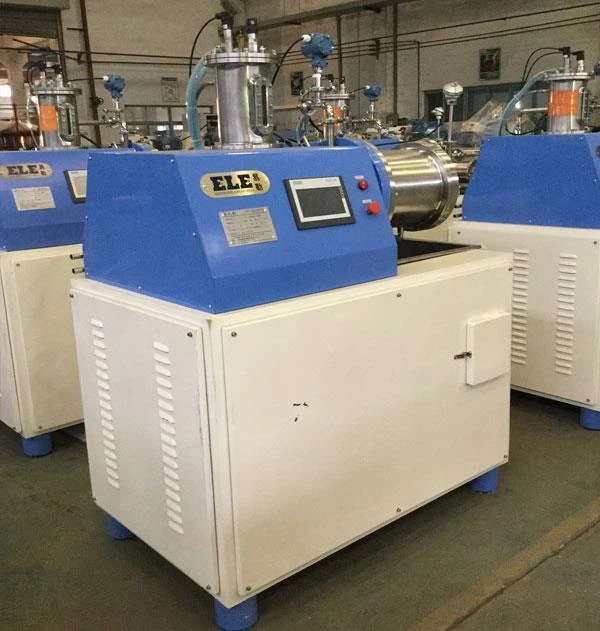

 Paint Bead Mill |  Paint Bead Mill Machine |
Owing to mature-technology, reliable and advanced, numerous well-known manufacturers in the fields of printing ink, color paste, paint, nanomaterials, pesticide, etc , finally choose ELE bead mill. Our engineers own rich experiences for a variety of materials.
Production flow for Paint making machine

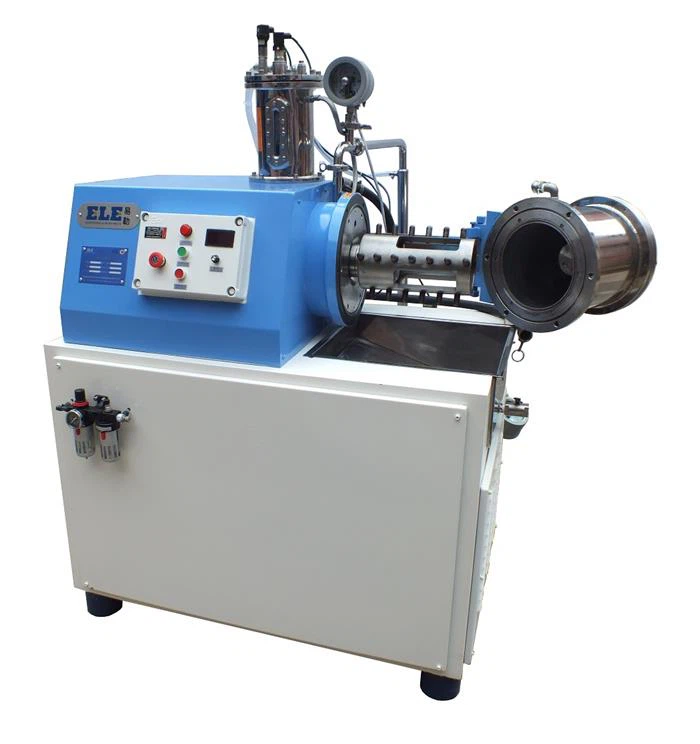

 Horizontal Bead Mill |  Paint Bead Mill Machine |
Specification
● Special Pin type contracture will pass higher power to the grinding beads,
● High Filling rate of grinding beads, more hit, more shearing force to the products, break down the particle size more quickly.
● Selection of special material (zirconia / silicon carbide/hard alloy steel etc.) enhance wearability of all processing contact parts,It adopts internal thread type cooling way, effectively improves heat dissipation the grinding chamber.
 Bead Mill for Paint |  Bead Mill Machine for Paint |
Three Types of Bead Mill
 Turbo Type Bead Mill |  Pin type Bead Mill |  Disc type Bead Mill |
Three Types of Contact material for option
Harden Alloy Steel: Strong Wear resistance, Alloy with special treatment, Hardness reach HRC62
Special ceramic material: zirconium or silicon carbide, Stronger wear resistance, No Metal contamination, Hardness reach HRC72-78.
PU polyurethane: No Metal contamination
Machine details
Advantages
Special Feeding System
Feeding pump with buffer tank to make sure feeding smoothly, buffer tank with pressure meter, If the grinding chamber is blocked, we can release the pressure from the buffer tank
Discharging System: New technology of Discharge method
Large Area centrifugal separator, the centrifugal wheel push away the grinding beads from the discharge sieve, make sure discharge smoothly, no blocking of beads
Special Mechanical Seal & Bearing Housing
● Special double cartridge mechanical seal, ensure long operation of shaft seal, maximum 8 -10 kg pressure;
● Special Bearing Housing, match mechanical seal well, one whole part, ensure the accuracy to below 0.03mm. Make sure stable working & extend the long life.
Cooling system
● High efficiency large area spiral ribbon type jacket water circulation chamber wall cooling
● Feeding pipe with jacket for cooling
Application
Coating: Water-based coating, Solvent-based coating,Decorative Coating,Latex paint;
Paint: Car Paint, Finish paint, Wood paint, Industrial paint;
Ink: Gravure Printing ink, Flexographic ink, Offset printing ink, Silk screen ink, UV light solid ink, Digital inkjet ink etc;
Pigment: Dye, Color painted pigment, Pen liquid，Watercolor;
Data Sheet & Models
Maintenance & Services
1.Before order, customer can take materials to ourvlab and make test grindings, spot-testing parameters like particle size distribution, obtain reliable data for model selection;
2.We provide you opeatian manual by chinese or English;
3.Within 12-months warranty period, we promise to change damaged parts free of charge by air or by sea;
4.After the warranty period, we provide maintenance and maintenance service, only charge the cost;
5.Meanwhile, our skillful grinding experts can offer you free professional technical consulting and service.
